Global - Credentials

A Credential stores a Windows user name, password and domain centrally on the VisualCron Server, so that Tasks, Triggers and Connections can run or connect as that user. This page describes the Manage credentials window, the window where you add and edit a Credential, and how the Server uses a Credential. Use it when a Task needs rights that the VisualCron service account does not have.

You need a Credential, for example, when:

• An Execute Task must run as a certain user
• An SQL Task uses a trusted connection (Windows authentication)
• A Task must authenticate against a web server or a network share
• Another Task, Trigger or Connection needs a certain user's permissions

Without a Credential, a Task runs as the account that the VisualCron Server service runs as. That account may not have access to your network drives or to certain folders, which is why you sometimes need a Credential.

The Server stores the user name, password and domain of each Credential encrypted.

To open the window, click the main menu Server -> Global objects -> Credentials. You need the Credentials permission with Read (see Credential permissions below).

The grid shows one row for each Credential that you have Read on. The columns are:

• User@Domain: the user name and the domain of the Credential
• Local: "True" when Local login is checked
• Load profile: "True" when Load user profile is checked
• Domain: the domain or computer name the Credential logs on to

The toolbar has these buttons:

• Add: opens the Add Credential window
• Edit: opens the selected Credential. You can also double-click the row
• Clone: opens a copy of the selected Credential with its own identifier, so changing the copy does not affect the original
• Delete: deletes the selected Credential after you confirm. If other objects use the Credential, the question says how many
• Copy Id to clipboard: copies the identifier of the selected Credential
• Audit log: opens the audit log for Credentials (see Objects - Audit Log)

Right-click a row for these commands:

• Add, Edit, Clone, Delete and Audit log: the same as the toolbar buttons
• Versions..: the version history of the Credential
• Object relations: the Jobs, Tasks, Triggers and other objects that use the Credential
• Export ...: export the selected Credentials (see Import/Export - Export Settings)
• Send to connection ...: copy the Credential to the Server that a VisualCron Connection points to (see Connection - VisualCron)
• Send to server connection ...: copy the Credential to another Server that this Client is connected to

In the grid, press Delete to delete the selected Credential, or Ctrl+A to select every row, for example before Export ....

note

A clone, or a copy sent to another Server, may not carry the stored password. Type the password again in the copy before you test or use it.

warning

Deleting a Credential does not update the Jobs, Tasks and Triggers that use it. Before you delete a Credential, use Object relations to see what uses it. Afterwards, select another Credential in each of those objects.

A Task that still refers to the deleted Credential behaves as follows:

• Some Tasks stop. Their result starts with "Impersonation failed in Task (Credential not found)"
• The Execute Task, and other Tasks that start a separate program, run as the VisualCron service account instead. They report no Credential error, so the program silently runs with the service account's rights
• When you open the Task, its Credential list shows No Credential. If you save the Task, the reference is removed, and from then on the Task runs without a Credential

To be told when a Task refers to a Credential that no longer exists, add a VisualCron Trigger on the Credential not found event (see Event Trigger - VisualCron).

Add or edit a Credential

Click Add to create a Credential, or select one and click Edit.

The window title is Add Credential, Edit Credential or Clone Credential, followed by the user, the domain and a summary of the logon options. For example: "Edit Credential - <user>@<domain> (local login+load profile)". The summary is "(local login+load profile)", "(local login)" or empty. The title updates while you edit, so you can check what the Credential will do before you save it.

Username:

The user to log on as. This field is required. The list offers the users of the Server computer. When MSA is checked, it offers the (g)MSA accounts instead. A new Credential starts with the user name and domain of the person running the Client.

MSA

Check it to use a Managed Service Account (MSA) or group Managed Service Account (gMSA). The Password: field is then not used, because the password comes from Active Directory when the Credential is used. See (g)MSA accounts below.

Password:

The user's password. The field is masked. For a saved Credential, the field shows a fixed placeholder instead of the stored password. Leave the field untouched to keep the stored password.

warning

Clearing the Password: field counts as a change, and saves an empty password. If you only want to change another field, leave Password: alone.

Domain:

The domain, or the name of the computer, that the user belongs to. The list offers the Server's domain, computers on the network, the hosts of your Connections and the domains of existing Credentials, and you can type any other value.

The field accepts VisualCron variables. Click Variables at the bottom left of the window to look one up. Variables are resolved when you click OK, and the resolved value is stored.

Local login and Load user profile checkboxes

These two checkboxes decide how the logon is made. See Local login and Load user profile below.

Test

Test asks the Server to try the logon, without saving the Credential.

The test only runs when Local login and Load user profile are both checked. With any other combination, VisualCron says that a test can only be performed and validated on Credentials using Local login and Load profile, and no test is made. A Credential for a network resource therefore can't be tested here. Check it by running a Task that uses the resource.

The result says whether the logon succeeded, whether the profile was loaded, whether a local logon was used and which user the test ran as. If the test failed, it also shows the error that Windows returned.

If you test a saved Credential without typing the password again, the Server tests the Credential as it was last saved, with its stored password and its saved options, not the values on screen. Save your changes first, or type the password again to test what is on screen. For this test, the Server checks that your groups have Read and Execute on the Credentials row, as for a run (see Credential permissions). Without them, no test result is shown.

When you test a clone, type the password first. When you test with a typed password, variables in Domain: are not resolved.

Permissions..

Opens the Override permissions for this object window. There you set, for a group, the Read, Add, Edit, Execute and Delete permissions on this Credential only (see Override permissions on one object). These overrides do not change the check made when a run or a test uses the Credential (see Credential permissions).

Copy Credential Id

Click the link at the bottom left to copy the Credential's identifier to the clipboard. The identifier names the Credential in exported settings and in the API. The link, and the right-click command below, work once the Credential has been saved.

To change the identifier, right-click the link and enter the new one in Enter new Credential Id. The new identifier must be in GUID format, and no other Credential may already use it. VisualCron tells you how many objects will change with it. Click Yes to continue, or No to see the list of objects first. The objects that use the Credential are updated to the new identifier. The change is made on the Server at once, even if you then click Cancel in the Credential window.

Variables

Opens the Variables window, where you can look up a variable to use in Domain:.

Local login and Load user profile

These two options cause most Credentials that "do not work", so set them deliberately. The text at the top of the window gives the same guidance.

Local login

Check it when the account exists on the VisualCron Server computer and you want to run something as that user. VisualCron then makes an interactive logon, which Windows validates when the Credential is used.

Clear it when you use the Credential to reach a network resource, such as a share on another server, with a user from a domain or from that other server. VisualCron then logs on with network-only credentials:

• On the Server computer: the program keeps its own identity
• On the network: the Credential is used only when the program connects to a network resource

This is useful between domains that have no trust relationship. Windows doesn't check the user name and password until the network resource is used, so a wrong password shows up only then.

Load user profile

This option is available only when Local login is checked. Clearing Local login also clears it.

When checked, VisualCron loads the user's profile after the logon. This makes the user's own environment variables and "HKEY_CURRENT_USER" registry settings available to the Task. Loading the profile is slower and uses more resources on the Server, so check it only when the Task needs the user's own environment.

If the user has never logged on to the Server computer, the profile doesn't exist yet. The logon then fails with "Impersonation error: the profile directory does not exist. Please login manually first or uncheck 'Load user profile'". Log on to the computer once as that user, or clear Load user profile.

Only two combinations are useful:

What you need the Credential for	Local login	Load user profile
Reaching a network share or file path on another server (for example, the Copy Files Task)	Cleared	Cleared (not available)
Running something as a specific user on the VisualCron Server computer	Checked	Checked
Windows authentication to a database (SQL Task, SSISDB Task, SQL Trigger)	Checked	Checked

warning

If you check Local login and leave Load user profile cleared, VisualCron warns when you save that this combination will probably give undesired results. Clear Local login if you want to reach a network resource, or check Load user profile if you want to run something as a certain user.

Always use UNC paths

When a Credential is used to reach a network resource, address the resource with a UNC path such as \\<server>\<folder>\<file>.bat. A mapped drive letter such as Y:\<file>.bat does not work, because drive mappings belong to a single user, and the VisualCron Server does not see the drives mapped by your own account. If you need drive letters, map them in VisualCron instead (see Global - Network Drives).

Examples

• Copying files to a protected network share: create a Credential for a domain user, or for a user that exists on the remote server, with Local login and Load user profile cleared. Select it in the Copy Files Task (see Task File - Copy Files), and address the destination with a UNC path
• Running a program as a specific user: create a Credential for that user with Local login and Load user profile both checked, and select it in the Execute Task (see Task Process - Execute). Loading the profile makes the user's environment variables available to the program
• Running an SQL query with a trusted connection: create a Credential for a Windows user that has access to the database, with Local login and Load user profile both checked, and select it in the SQL Task (see Task Database - SQL). The SQL Connection must use Windows authentication (see Connection - SQL). Otherwise, VisualCron warns when you save the Task that you should not use a Credential with that Connection. VisualCron also warns if Load user profile is cleared, because the Task might then fail to authenticate
• Unlocking the desktop for a Task that needs the screen: a Robot Task or a Desktop Macro Task needs an active desktop (see Task Interactivity - Robot Task and Task Interactivity - Desktop Macro). Create a Credential for the user that normally logs on to that computer, with Local login and Load user profile both checked. Then select it for Logon/Unlock using Credential in the Task's execution context (see Task Main Settings - Execution Context)
• Using a service account without storing a password: check MSA and select the account in the Username: list. The Password: field is not used, because the password comes from Active Directory when the Credential is used

Execution and impersonation options

Two additional groups of settings appear in the window when Extended debug logging is selected on the Log settings tab of the Server settings.

For that setting, see Settings - Log Settings.

warning

These options are for fine-tuning a logon that fails, normally together with VisualCron support. The defaults work in almost every environment. Click Reset to default to return to them.

Execution options

This list selects how a Task that starts a separate program starts it as the user:

• Use Win32 API CreateProcessWithLogonW (the default)
• Use managed API
• Use Win32 API CreateProcessAsUserW

Selecting an option also sets a matching logon type. Use Win32 API CreateProcessWithLogonW sets LOGON32_LOGON_NEW_CREDENTIALS, and Use Win32 API CreateProcessAsUserW sets LOGON32_LOGON_BATCH. Use managed API leaves the logon type unchanged.

Reset to default sets every option in both groups back to the defaults in the table below, and also Local login and Load user profile.

Impersonation options

The first list is the Windows logon type:

• LOGON32_LOGON_INTERACTIVE
• LOGON32_LOGON_NETWORK
• LOGON32_LOGON_BATCH
• LOGON32_LOGON_SERVICE
• LOGON32_LOGON_UNLOCK
• LOGON32_LOGON_NETWORK_CLEARTEXT
• LOGON32_LOGON_NEW_CREDENTIALS

The second list is the Windows logon provider:

• LOGON32_PROVIDER_DEFAULT
• LOGON32_PROVIDER_WINNT35
• LOGON32_PROVIDER_WINNT40
• LOGON32_PROVIDER_WINNT50

The checkboxes are:

• Duplicate token: duplicate the access token for the impersonated session
• Suppress flow: keep the impersonated identity from flowing to other threads
• SeTcbPrivilege: enable the "Act as part of the operating system" privilege during a network-only logon, or during any logon when Override LT/LP is checked
• Override LT/LP: use the logon type and logon provider selected in the two lists, instead of the ones VisualCron picks itself
• Open desktop: open the user's desktop when the program starts. When it is checked, the box next to it holds the desktop name

info

The two lists are used only when Override LT/LP is checked. When it is cleared, VisualCron picks the logon type and provider itself. Use Win32 API CreateProcessAsUserW then always uses LOGON32_LOGON_BATCH.

For a Credential with a password, a checked Override LT/LP applies only to Test and to Tasks that start a separate program with Use Win32 API CreateProcessAsUserW. Other Tasks use VisualCron's own choice.

For a (g)MSA Credential, the selected values are used by Test, by Tasks that use the Credential inside VisualCron, and by Use Win32 API CreateProcessAsUserW.

The defaults are:

Option	Default
Local login	Checked
Load user profile	Checked
Execution options	Use Win32 API CreateProcessWithLogonW
Logon type	LOGON32_LOGON_NEW_CREDENTIALS
Logon provider	LOGON32_PROVIDER_DEFAULT
Duplicate token	Checked
Suppress flow	Checked
SeTcbPrivilege	Cleared
Override LT/LP	Cleared
Open desktop	Checked
Desktop name	"WinSta0\Default"

(g)MSA accounts

To use a Managed Service Account (MSA) or group Managed Service Account (gMSA), check MSA and select the account in the Username: list. Leave Password: empty, because the password comes from Active Directory when the Credential is used.

warning

The "Act as part of the operating system" privilege, named in step 2 below, lets an account act as any user on the computer. Grant it only to the dedicated account that the VisualCron Server service runs as, and to no other account.

To prepare your Active Directory environment for a gMSA Credential, complete the following steps:

1. Check that the VisualCron Server computer can retrieve the gMSA password. In PowerShell, run:

   Get-ADServiceAccount -Identity <gMSA-account> -Properties PrincipalsAllowedToRetrieveManagedPassword

   If the Server computer is not allowed, update the gMSA account.

2. Check that the VisualCron Server service runs under an account that has the "Act as part of the operating system" privilege.

3. On both the domain controller and the VisualCron Server computer, open the Group Policy security option Computer Configuration -> Windows Settings -> Security Settings -> Local Policies -> Security Options -> Network security: Configure encryption types allowed for Kerberos. Enable at least one encryption type that fits your company's security policy.

Then create the Credential. The example below uses these settings:

• MSA: checked
• Local login: cleared, so Load user profile is cleared too
• Execution options: Use Win32 API CreateProcessAsUserW
• Logon type: LOGON32_LOGON_SERVICE
• Logon provider: LOGON32_PROVIDER_DEFAULT
• Duplicate token, Suppress flow, SeTcbPrivilege and Override LT/LP: checked
• Open desktop: cleared

The execution and impersonation options are shown only when Extended debug logging is selected (see Execution and impersonation options).

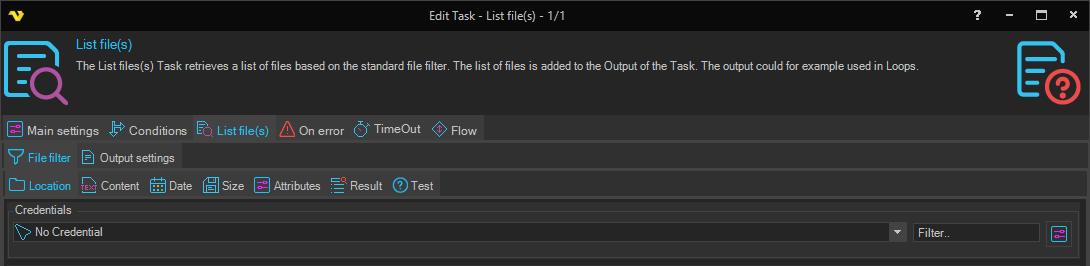

Select a Credential in a Task

After you add a Credential, it is available wherever a Task, Trigger or Connection asks for one. Select it in the Credential list. Type in Filter.. to narrow the list, and click the button next to it to open the Manage credentials window.

The list shows each Credential as <user>@<domain>, followed by the same summary of the logon options as the window title, such as "(local login+load profile)". One Credential per purpose and per account keeps the list readable. Use Object relations in the Manage credentials window to see everything that uses a Credential.

Credential permissions

Credentials are governed by the Credentials permission (see Main - User Permissions and Supported Permissions). With Permissions.. (see above), you can give a group different rights on one Credential. On the Server, overrides on a Credential control who can view, edit, delete and export it. They do not change the check made when a run uses it.

• Read: open the Manage credentials window, and see the Credential in the grid and in the Credential lists of Tasks, Triggers and Connections
• Add: add a Credential. A clone is a new Credential, so it needs Add as well as Edit
• Edit: save changes to a Credential, and change its identifier
• Delete: delete a Credential
• Execute: use the Credential

When a run is tied to a user, the Server checks Read and Execute for that user when the Task runs. The Server checks the group's Credentials row only. Overrides on the Credential, and Use group permissions only (ignore per-object overrides), are not taken into account for this check. A grant in an override therefore does not make the run pass, and a deny in an override does not block it. A run is tied to a user when it is a single Run Job or Run Task started from a Client, a test of a saved Credential, or a Task run requested through the Web API with a user (Task/Run). Runs started by the schedule or by a Trigger, Run selected Jobs, and Jobs started through the Web API (Job/Run) are not tied to a user, so no check is made. If the check fails, Tasks that start a separate program, such as the Execute Task, run as the VisualCron service account, and Tasks that use the Credential inside VisualCron fail with an error.

In the Client, many Task and Trigger windows check Execute when you save. When you run a single Task, the Client checks your groups' Execute on Credentials, not a group's override on the Task's Credential, and it does so even for a Task that uses no Credential. If that check fails, the Client does not start the Task and shows "You are not allowed to use this Credential in this Task". A group that needs to run single Tasks from the Client therefore needs Execute on the Credentials row itself, not only in a Credential's override.

warning

After a Credential is added or changed, the Server sends the Credential to every logged-on Client, including users who do not have Read on it. Give logons to the Server only to people you trust with your Credentials.

The built-in Viewers group always has Read on Credentials. The box is grayed out and can't be cleared. Put users who must not see Credentials in a group you create yourself, and clear what that group must not have.

Don't rely on Execute alone to keep a user from running programs with a Credential's rights. Runs that are not tied to a user are not checked, and a failed check makes Tasks that start a separate program run as the VisualCron service account. Also limit who can add, edit and run Jobs and Tasks.

If a user who can't read a Credential opens a Task that uses it, the Credential list shows No Credential, and saving the Task removes the Credential from it. Let only users with Read on the Credential edit such Tasks.

Troubleshooting

A Task using a Credential fails with access denied

1. Check the combination of Local login and Load user profile against the table above. Reaching a network share needs both cleared. Running as a local user, or an SQL Task with Windows authentication, needs both checked.
2. Check that the resource is addressed with a UNC path, not a mapped drive letter.
3. For a local account, open the Credential and use Test to confirm the user name, password and domain.
4. See also File Not Found / Access Denied.

A Task fails with "Impersonation failed in Task (Credential not found)"

The Credential was deleted while the Task still referred to it. Select an existing Credential in the Task, or create the Credential again and select it.

note

In this situation, the Task's Credential list shows No Credential, so nothing in the Task shows that a Credential was ever selected. If the Task has been saved since the Credential was deleted, the reference is gone, and the Task now runs without a Credential. That usually shows up later as an access denied error instead of this message.

A program runs with the service account's rights

An Execute Task, or another Task that starts a separate program, runs as the VisualCron service account in two cases:

• Its Credential has been deleted
• The user tied to the run lacks Read or Execute on the Credentials row

Check the Task's Credential, and the permissions of the users who run the Job (see Credential permissions).

A Task fails only when certain users run it

When a run is tied to a user who lacks Read or Execute on the Credentials row, Tasks that use the Credential inside VisualCron fail with an error. That is a single Run Job or Run Task started from a Client, or a Task run requested through the Web API with a user (Task/Run). The same Job works when it runs on its schedule, from a Trigger, with Run selected Jobs or through the Web API with Job/Run. Give the user's group Read and Execute on the Credentials row, or let another user run the Job. An override on the Credential does not change this check (see Credential permissions).

Test can't check a Credential for a network resource

Test runs only when Local login and Load user profile are both checked, so a Credential with both cleared can't be tested in this window. To check it, run a Task that uses the network resource, or verify the account details directly on the remote server.

The logon fails because the profile directory does not exist

The user has never logged on to the VisualCron Server computer, so there is no profile to load. Log on to the computer once as that user, or clear Load user profile.

An SQL Task warns about the Credential when you save it

There are two possible reasons:

• The SQL Connection doesn't use Windows authentication, so you should not use a Credential with it (see Connection - SQL)
• Load user profile is cleared, so the Task might fail to authenticate

See the SQL example above.

Error -1073741502

See Task Process - Execute.

Failed to connect to Credential Provider

See the troubleshooting steps in Task Main Settings - Execution Context.
