Remote File Filter​

The remote file filter is a limited version of the normal local file filter. The difference is that the remote file filter is limited for remote Tasks (like FTP/SFTP) and Triggers (Remote file).

Evaluation​

The file filter is evaluated the following way:

  • Location AND Content AND Date AND Size AND Attributes = filtered files
  • Date = Date older than AND/OR Date newer than
  • Size = Size smaller than AND/OR Size larger than

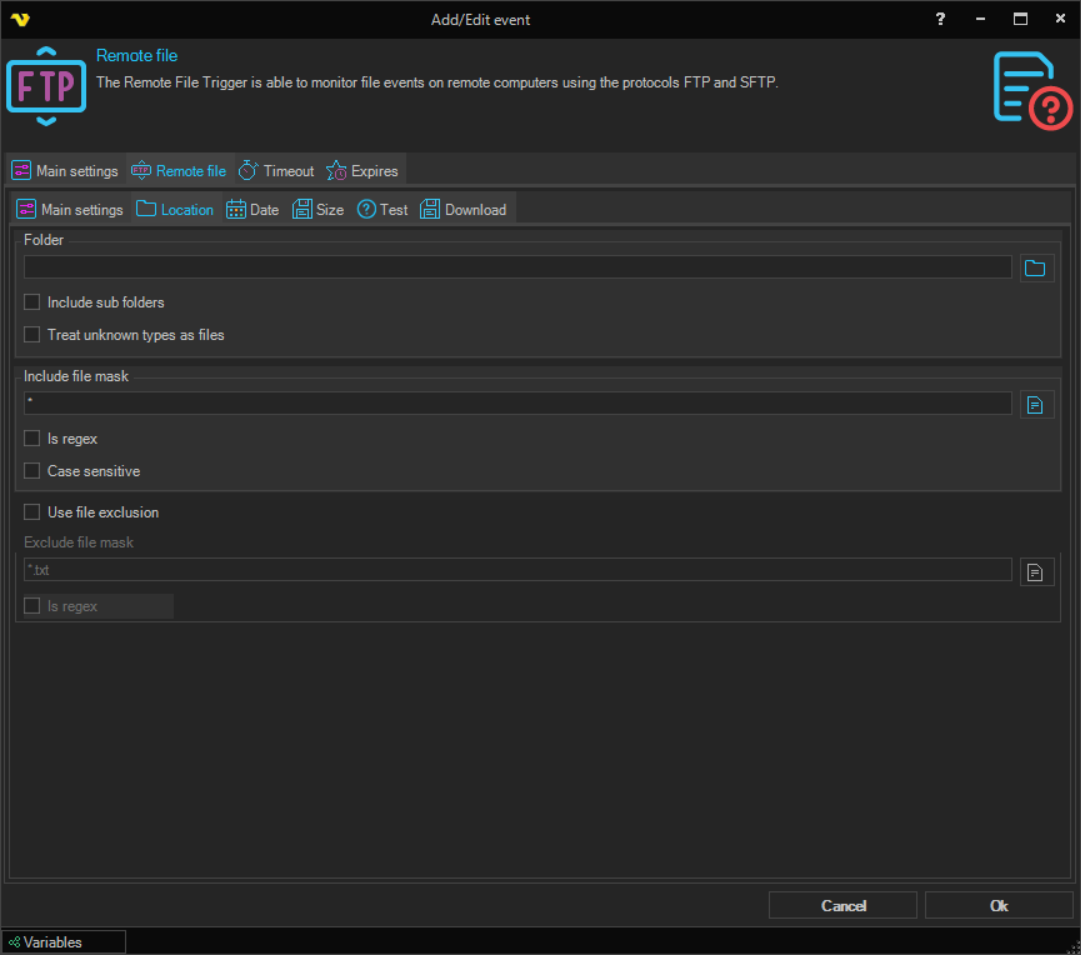

Remote file filter > Location sub tab

This tab contains the basic properties of finding one or more files.

Folder

The folder path where the source file(s) reside. You can input several folders by separating with semicolon ";" like this: C:\Temp;C:\test

Include sub folders

If the file filter should look for files in sub folders then check this option.

Treat unknown types as files

Some servers to not report the correct item type (file or folder) when listing items and instead reporting unknown type. When checking this property VisualCron will treat unknown types as files.

Include file mask

Defined your file mask for the file name here. When not using “Is regex” string here you can use the normal wildcard characters like * or ?. You can input more than one file mask by separating them with semicolon ";" like this: *.doc;*.txt

Is regex

If the include file mask is a regular expression. For more information about regular expressions please look here: http://www.regular-expressions.info/

Case sensitive

If the file name search is case sensitive.

Use file exclusion

Check this to enable the exclude file mask below. When unchecked, no exclusion mask is applied.

Exclude file mask

It is possible, the same way, to use a exclusion filter. When not using “Is regex” string here you can use the normal wildcard characters like * or ?.

Is regex

If the exclude file mask is a regular expression. For more information about regular expressions please look here: http://www.regular-expressions.info/

Case sensitive

If case sensitive search should be done on the exclude file mask.

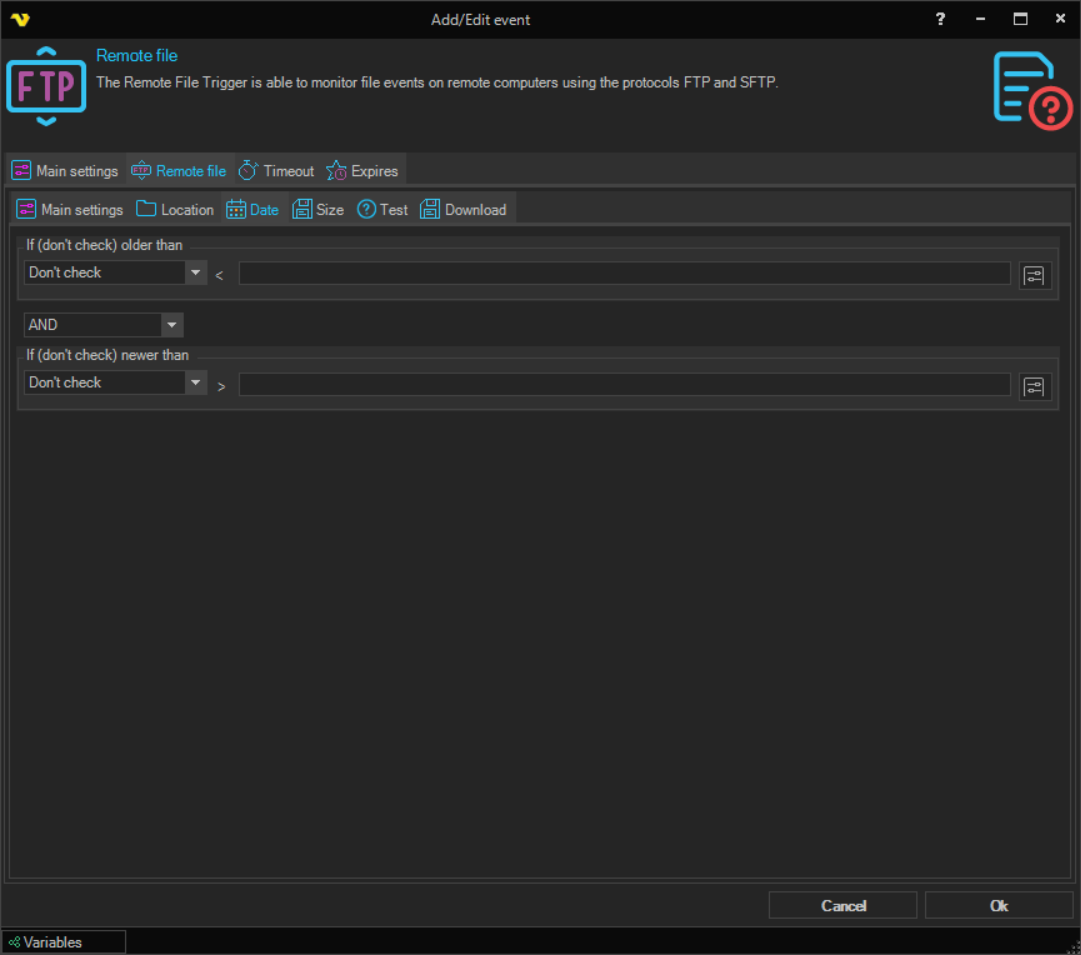

Remote file filter > Date sub tab

It is possible to filter files by date. There are two checks, Older than and Newer than, which can be combined with the AND/OR selector or used separately. For each, select which date to check (Don't check, Created date or Modified date) and enter a value or Variable. Only date Variables can be used here.

Validate dates before saving

When checked, the entered date Variables are validated against the server date format when the filter is saved.

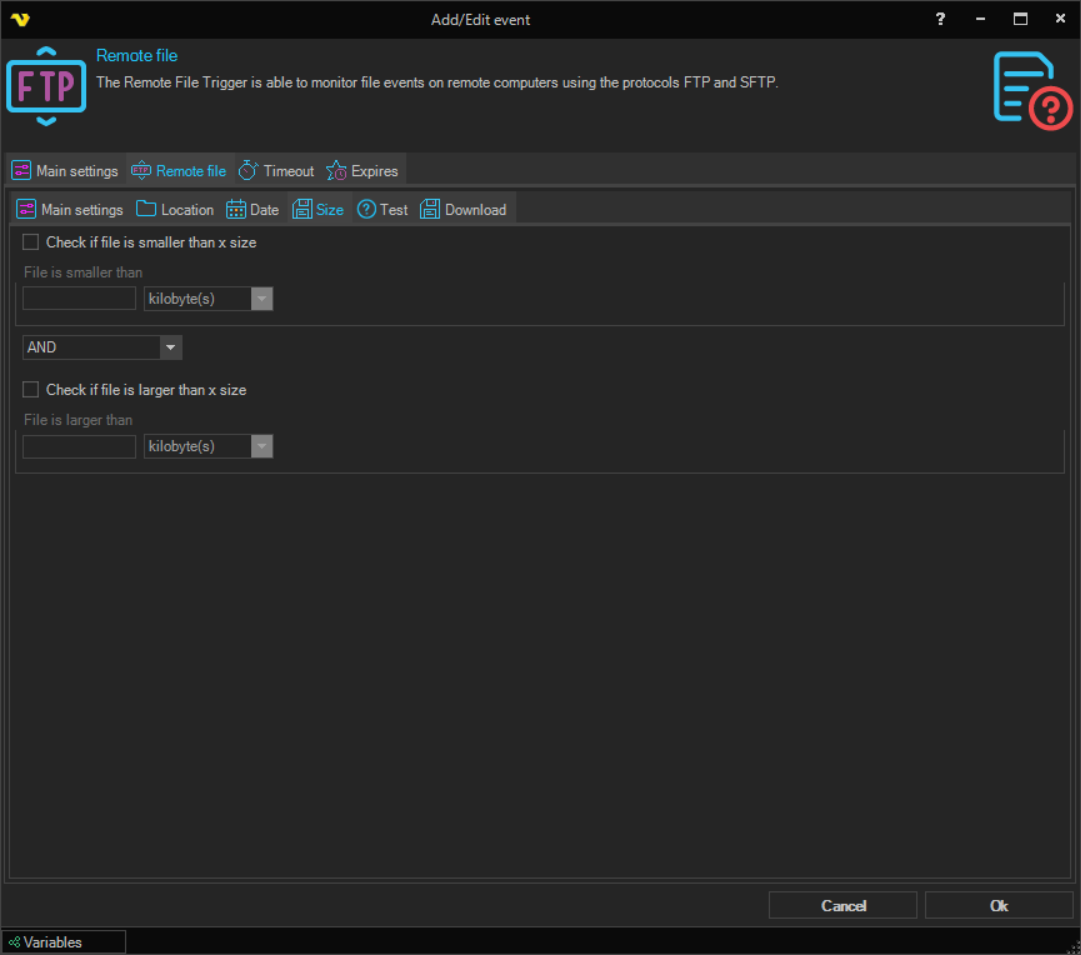

Remote file filter > Size sub tab

It is possible to filter out files based on size. Like the Date filter it can be combined with AND/OR and check can be done on Larger than or Smaller than.

Check if file is smaller than x size

Filter files that are smaller than a value/Variable. Select the unit (byte(s), kilobyte(s), megabyte(s), gigabyte(s) or terabyte(s)).

Check if file is larger than x size

Filter files that are larger than a value/Variable. Select the unit (byte(s), kilobyte(s), megabyte(s), gigabyte(s) or terabyte(s)).

Remote file filter > Result sub tab

The filtered files can be sorted and the number of returned rows limited.

Sort

By checking Sort you can sort the found files on values like name, modified date, created date and size, in Ascending or Descending direction. If sort is unchecked the files are presented in the order they are discovered.

Limit

Check this if you want to limit the number of rows returned. It will be limited according to the number (which could be a Variable) and the current sorting.

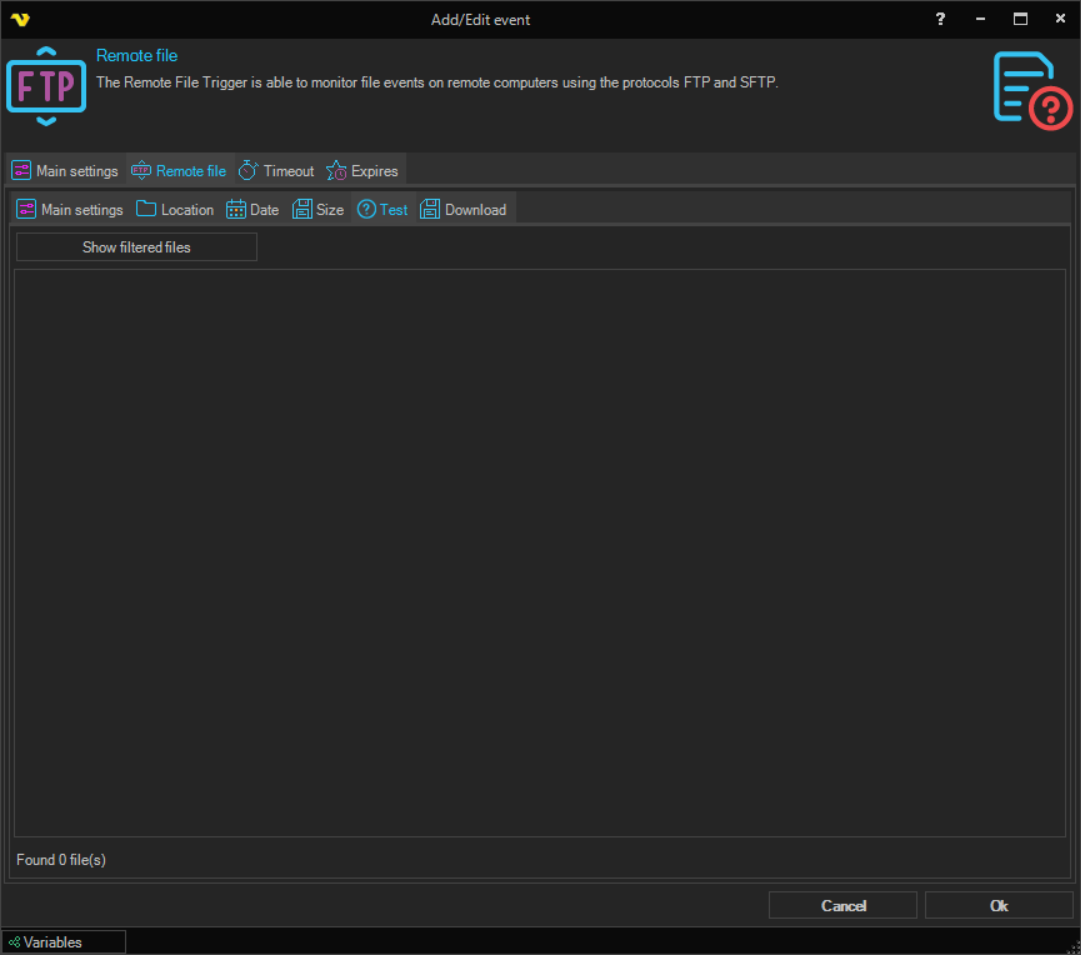

Remote file filter > Test sub tab

In the Test tab you can test your current file filter - if it matches any existing files. The test will use the connection selected for the Task. Click on Show filtered files to test the filter; the number of files found and the elapsed time are shown.
