Task Reporting - Crystal Reports

The Crystal Reports Task allows you to output Crystal reports in various formats like PDF, Excel and to printer. With this Task you can specify in-parameters and record filter. The record filter can further narrow down the report query.

This Task uses the Crystal Reports Connection. It requires runtime files to be installed on the Server. You can find this in the Connection.

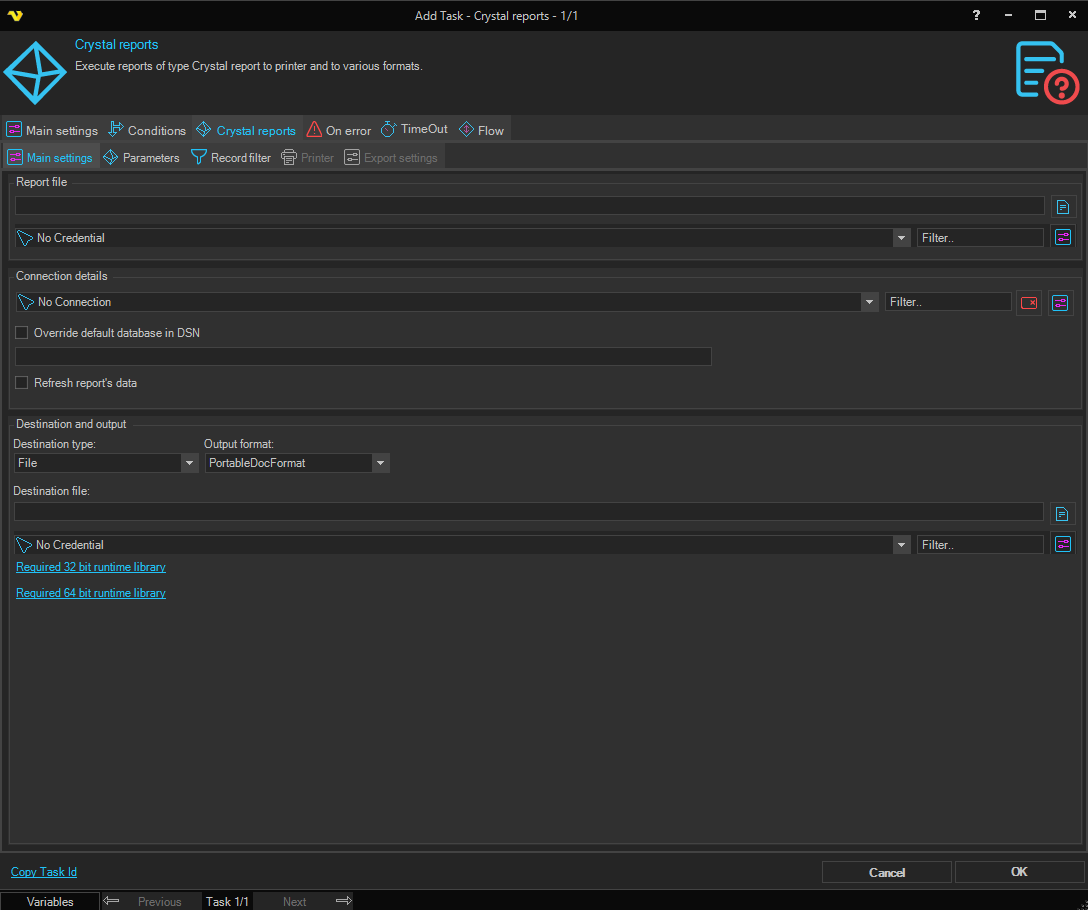

Crystal reports > Main settings sub tab

Report file

This is the path to the report. If located on a network drive you need to specify the Source Credential)

Report file

The full path to the Crystal Reports file.

Source Credential

If the report file is on a network drive, select a Credential to authenticate access.

Connection details

Select one or more Connections depending on how many database connections your report uses.

Override default database in DSN

When checked, overrides the default database specified in the DSN. Enter the database name in the field below.

Refresh report's data

When checked, refreshes the report's data before generating the output.

Destination and output

Destination type

Select the output destination: file or printer.

Output format

Select the output file format. Available when the destination type is set to file.

Destination file

The full path to the output file.

Destination Credential

If the output file is on a network drive, select a Credential to authenticate access.

Required 32 bit runtime library / Required 64 bit runtime library

Links to download the Crystal Reports runtime library required by the server. Install the version that matches your VisualCron server's bitness.

Crystal reports > Parameters sub tab

Your report might include required or optional parameters. Click Import parameters to automatically import the parameters defined in the report. You must configure the Connection settings in the Task before clicking Import parameters, otherwise VisualCron cannot query the report for parameters.

Use Add, Edit, and Delete to manage parameters manually. You can also edit a parameter by double-clicking on it.

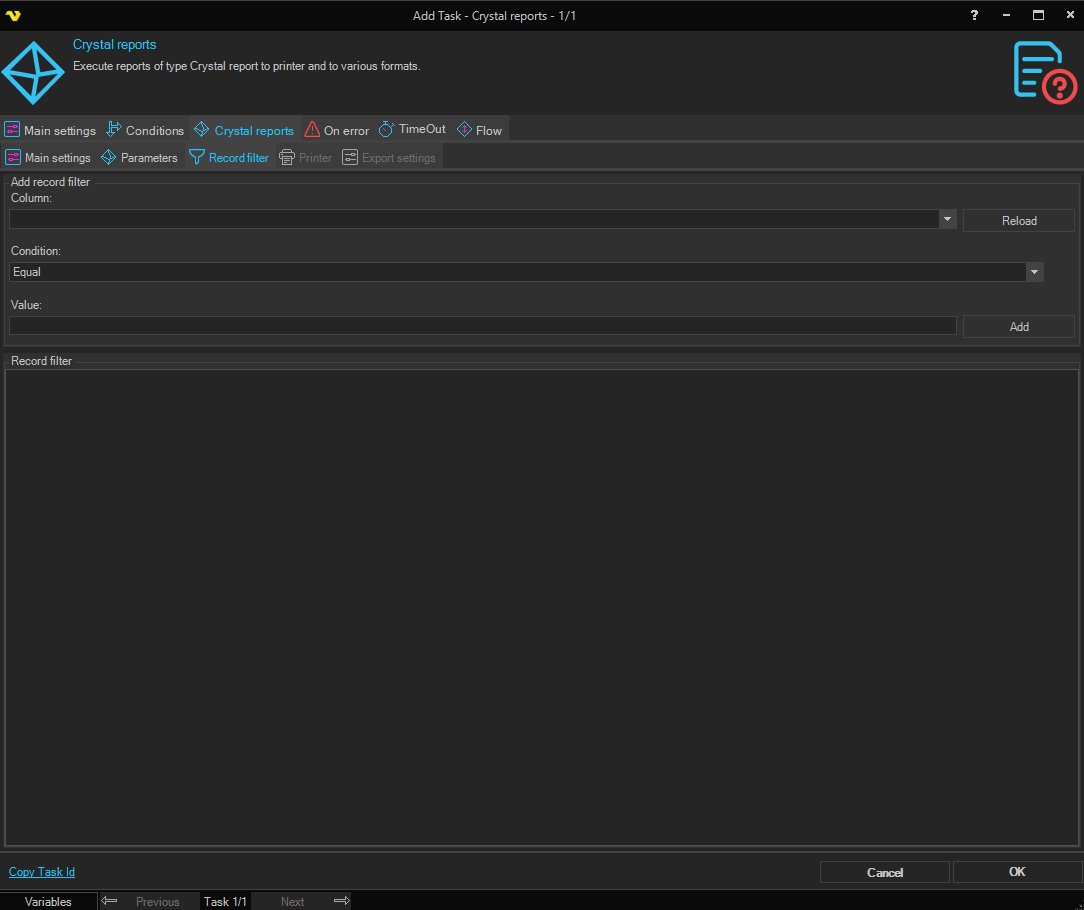

Crystal reports > Record filter sub tab

Add record filter

Use the controls in this group to build and add filter conditions to the record filter expression.

Column

Select a report column to filter on. Click Reload to populate the list with columns from the connected report.

Condition

Select the comparison condition to apply to the selected column.

Value

Enter the value to compare against. Click Add to append the condition to the record filter.

Record filter

Displays the current record filter expression, similar to a SQL WHERE clause. You can also type or edit the filter expression directly in this field.

Crystal reports > Printer sub tab

The Printer tab is available when Printer is selected as the destination type.

Select printer

Select the printer to use for output.

Printer settings

Page range

All pages / Pages

Select All pages to print the entire report. Select Pages to print a specific range and enter the page numbers or range in the field below (for example, 2-4).

Pages

Number of copies

The number of copies to print.

Collated

When checked, prints multiple copies in collated order.

Orientation

Portrait / Landscape

Select the page orientation for printing. Defaults to Portrait.

Crystal reports > Export settings sub tab

Text export settings

Characters per inch

The number of characters per inch for text-format export output.

Lines per page

The number of lines per page for text-format export output.

Troubleshooting

Could not load file or assembly 'CrystalDecisions.ReportAppServer.DataDefModel, Version=13.0.3500.0

Make sure you installed the Crystal Reports runtime 13.0.24.
