Task Office - Office - Macro​

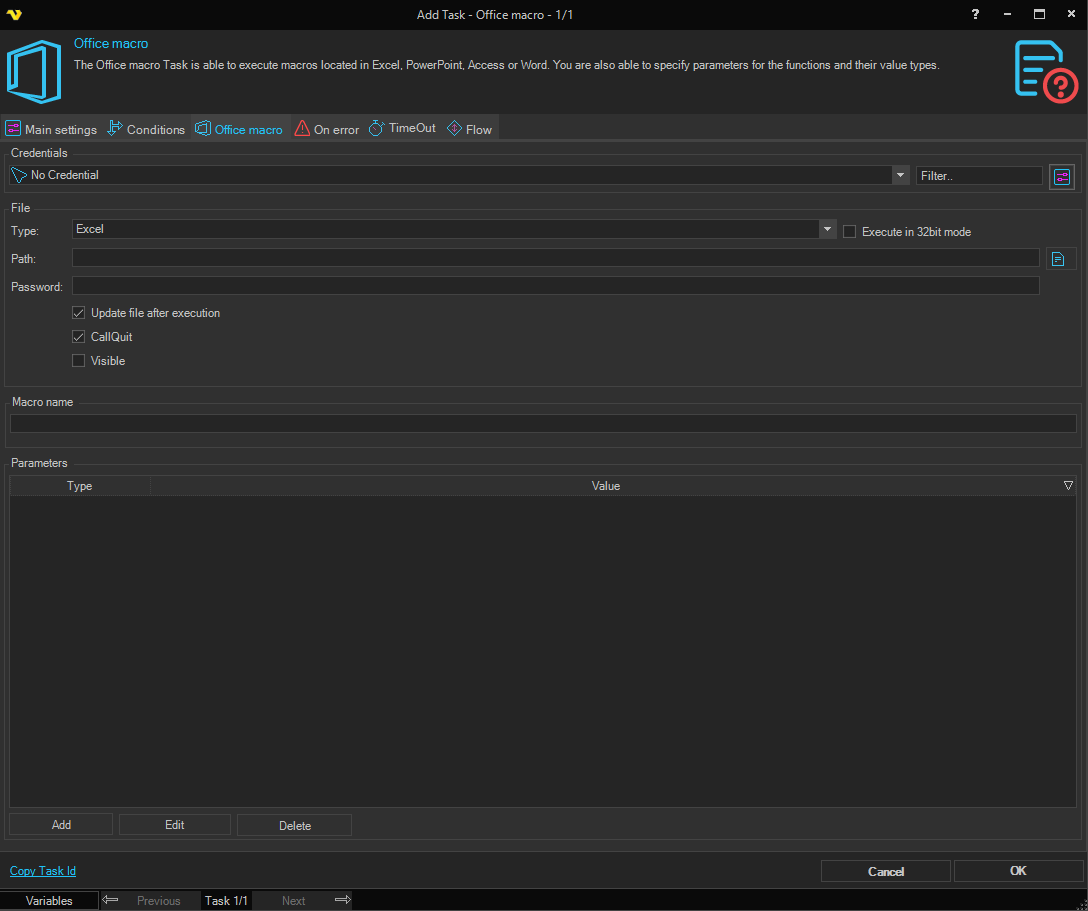

The Office macro Task is able to execute macros located in Excel, PowerPoint, Access or Word. You are also able to specify parameters for the functions and their value types.

Credentials

To control a remote computer you may need to use a Credential. The Credential must match the user name and password of the user that you want to login for. Select a Credential in the combo box or click the Settings icon to open Manage credentials in order to add or edit Credentials.

File

Type

Select the Office application type: Excel, PowerPoint, Access, or Word.

Execute in 32bit mode

When checked, executes the macro using the 32-bit Office process. Enable this if your Office installation is 32-bit.

Path

The full path to the Office document containing the macro.

Password

The password for the document. Leave empty if the document is not password protected.

Update file after execution

When checked, saves the document after the macro runs. Useful when the macro performs calculations or modifies data.

CallQuit

When checked, calls the Quit method on the Office application after the macro completes. If your macro already calls Quit, uncheck this option to avoid conflicts.

Visible

When checked, makes the Office application window visible during execution. Leave unchecked to run the macro in the background.

Macro name

Enter the name of the macro to execute. Use only the macro name — do not include the full file path. For macros in a specific module, use the format ModuleName.MacroName (for example, MainModule.CalcSomething).

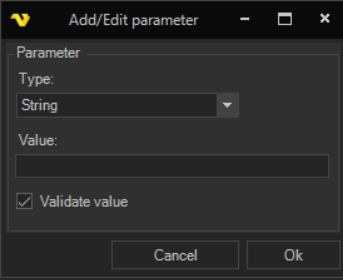

Parameters

If the macro function requires parameters, use the Add, Edit, and Delete buttons to manage them.

Choose the appropriate value type and set the actual value. Normally VisualCron validates the value against the data type. If you use a Variable that validation can fail if the value is not set in the Variable. To prevent failure you can uncheck the Validate value checkbox.

Errors​

Macro hangs / runs forever / is not doing what it is supposed to do

The Excel macro Task is the most sensitive Task in VisualCron. This is because of two major things:

  1. There is a dependency to a desktop tool Excel.exe while VisualCron is running as a service in the background
  2. The actual execution is being done in the background - a hang usually means that Excel exe has aborted execution with an error - that we cannot see becuase it is not executed in the desktop.

But we could do some different tests:

To rule out some issues please test the following:

  1. We have created a test macro that just writes a file "vba.txt" in c:\ root. You can download this file from here: https://www.visualcron.com/files/support/WriteFile.zip. Unzip it to a local folder.

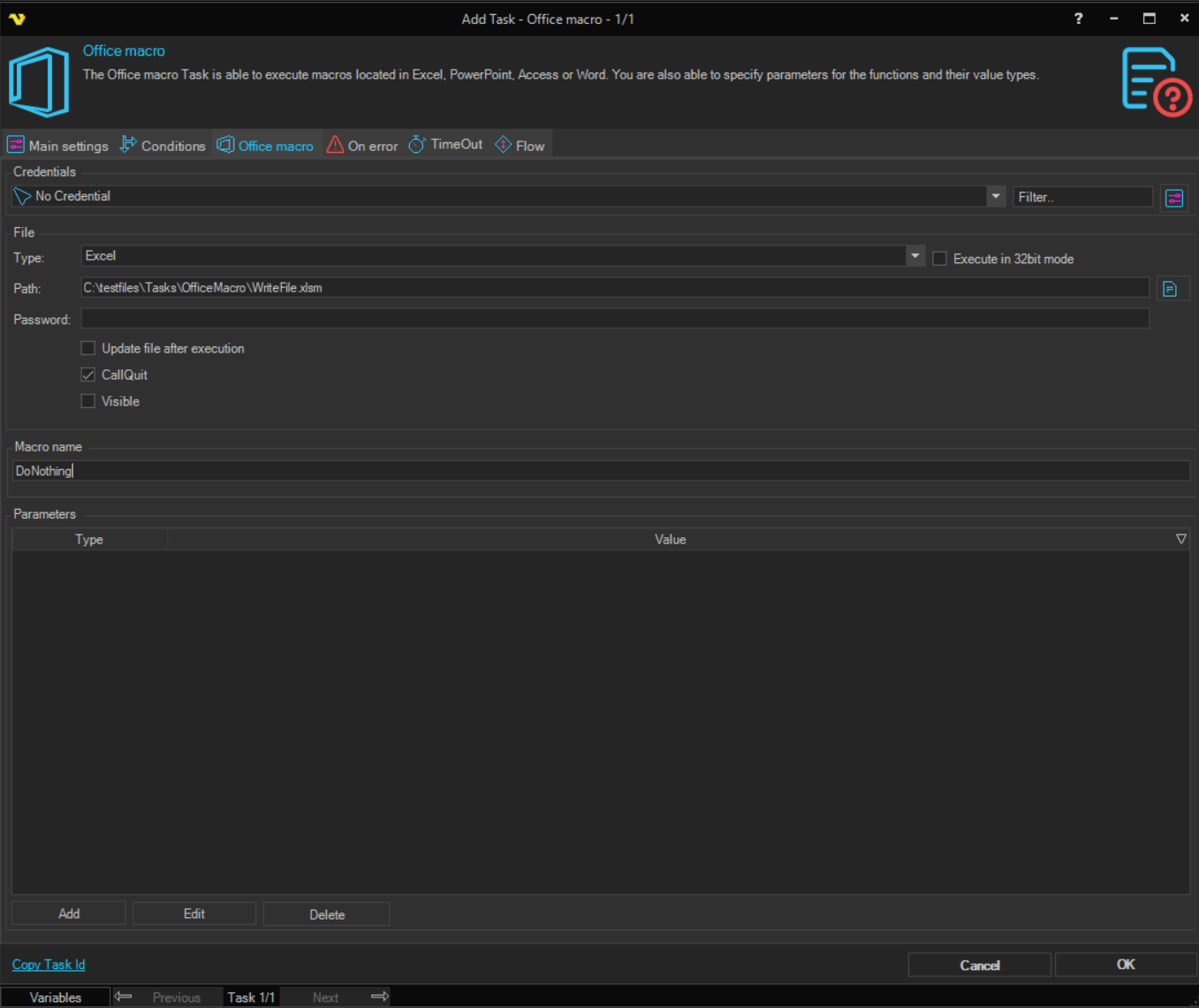

  2. Create a new Job with new Office macro Task using these settings:

  1. Save and try to run the Job. Check if file vbs.txt has been created in c:\ root

If the above does not work it might be something wrong in your system like a faulty Excel installation or permission limitations. If it works, but your macro still does not you need to add debugging to your macro. Easiest way is to use similar code as in the test macro to write to file. Add writing a line for each line in your code to determine which line does not work. Depending on which line it is different solutions could be done. You might need to set a Credential in the Task.

Possible reasons for error:

  1. You have not set the right 32 or 64 bit flag (it is not matching currently installed Office Macro)
  2. When testing, always test local first
  3. Make sure you only use the macro name in Macro name field. No full path.
  4. Use default settings with Visible flag unchecked
  5. Make sure Credential is used correctly

Alternatively you can try using other Task types;

  1. Execute Script Task - use this code:

Code should be placed in a .vbs file


Set objExcel = CreateObject("Excel.Application")
objExcel.Application.Run "'C:\Users\Ryan\Desktop\Sales.xlsm'!SalesModule.SalesTotal"
objExcel.DisplayAlerts = False
objExcel.Application.Quit
Set objExcel = Nothing

  1. Execute Task. Use full path to Excel.exe in command line and full path to your macro file with the module and macro name included like this: C:\Users\Ryan\Desktop\Sales.xlsm'!SalesModule.SalesTotal

You might need to set a Credential in the Task.

  1. Execute Task - with Foreground mode. Use same settings as 2 but without the Credential. Go to main settings of the Task - Execution context. Set it to something like this:

System.Reflection.TargetInvocationException: Exception has been thrown by the target of an invocation. ---> System.Runtime.InteropServices.COMException (0x800A03EC): Microsoft Excel cannot access the file 'C:\your file.xlsm'.

There are several possible reasons:

Solution

  1. Create directory "C:\Windows\SysWOW64\config\systemprofile\Desktop" (for 64 bit Windows) or "C:\Windows\System32\config\systemprofile\Desktop" (for 32 bit Windows)
  2. Set Full control permissions for directory Desktop (for user "SYSTEM")

Please do this for both 32 and 64 bit folder.

System.Runtime.InteropServices.COMException (0x800A07D1): You canceled the previous operation.

Try running the Task with a Credential that has option "Local logon" and "Load profile" checked.

System.Runtime.InteropServices.COMException (0x800A03EC): Cannot run the macro Macro1'.

The macro may not be available in this workbook or all macros may be disabled.

Open the document and find the list of macros. Use the full path to the macro, like: MainModule.CalcSomething

Faulting application name: EXCEL.EXE


Faulting application name: EXCEL.EXE, version: 15.0.4719.1000, time stamp: 0x552cf4af
Faulting module name: VBE7.DLL, version: 0.0.0.0, time stamp: 0x54d16140
Exception code: 0xc0000005
Fault offset: 0x00008c0e
Faulting process id: 0x2914
Faulting application start time: 0x01d0a28e5b929b88
Faulting application path: C:\Program Files\Microsoft Office 15\Root\Office15\EXCEL.EXE
Faulting module path: C:\Program Files (x86)\Common Files\Microsoft Shared\VBA\VBA7.1\VBE7.DLL
Report Id: 9a82692d-0e81-11e5-9bb4-989096a28d27

Solution 1 - Recompile the Project

  1. Open the workbook in Excel. Normally Excel will disable macros in a worksheet until you click a button to enable the macros. Do not enable the macros just yet.
  2. Open the VBA editor. You can hit ALT+F11 or on the ribbon click Developer > Visual Basic
  3. In the VBA editor double click your module or first module that contains your project. Add a commented line of code such as: ‘ This is a comment Then click on the Debug menu at the top and click Compile VBA Project. Repeat this step for each module in your workbook and then save the workbook.
  4. Close the workbook and re-open it and enable the macros and test it.

Solution 2 - Disable Compile on Demand

In the VBE Editor in Excel, click on Tools > Options > General tab and click to uncheck “Compile on Demand”. Alternatively you can set the following registry key: HKEY_CURRENT_USER\Software\Microsoft\VBA\7.0\Common Type: DWORD Name: CompileOnDemand Value: 0

0x800706BA along with COMException

System.Runtime.InteropServices.COMException (0x800706BE): The remote procedure call failed. (Exception from HRESULT: 0x800706BE)

Comment out any Quit command in your macro.
