Task Process - Assembly Execute​

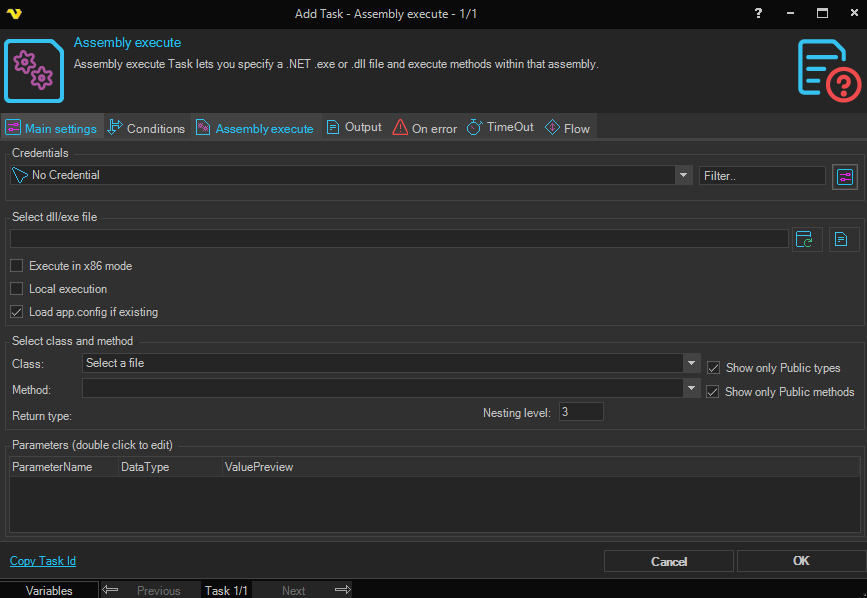

The Process - Assembly execute Task lets you specify a .NET .exe or .dll file and execute methods within that assembly. Select an assembly, class and method. Then double click on parameter rows to set values. Depending on the value type different input forms will be used.

Output

The Assembly execute returns a string representation of the result. The output format determines how the return value is serialized. When using the ToString format, array values are separated by commas.

Output format

Select how the method's return value is serialized:

  • ToString representation of output — calls .ToString() on the return value (default). Arrays are comma-separated.
  • XML representation of output — serializes the return value as XML.

Credentials

To control a remote computer you may need to use a Credential. The Credential must match the user name and password of the user that you want to login for. Select a Credential in the combo box or click the Settings icon to open Manage credentials in order to add or edit Credentials.

Select dll/exe file

This is the full path to the assembly file. If you move this Task to another place you need to move the assembly file as well. The file selection button open the explorer to select the file. The Refresh button reloads the class/method information.

Execute in x86 mode

Executes the assembly in a x86 process.

Local execution

Hosts the assembly in VisualCron instead of external process. Should only be used for simple assemblies without dependencies. Please note that you need to restart the VisualCron service to reload any assembly into memory with this option checked.

Load app.config if existing

Tries to load the app.config of your dll if it exists.

Class

This is the name of the Class.

Show only public types

When selecting a file or clicking refresh class information is loaded from the assembly. By default, only public classes are loaded. If you want to load class with other modifiers/visibility you must uncheck this.

Method

When you change the Class all methods within that Class will be populated into the method combo box.

Show only Public methods

When selecting a file or clicking refresh method information is loaded from the assembly. By default, only public methods are loaded. If you want to load method with other modifiers/visibility you must uncheck this.

Return type

This label shows the return type of the selected method. This is the type that will be converted to a string in the Output of the Task.

Nesting level

Controls how many levels deep VisualCron reflects into complex types when loading class and method information. Default is 3. Increase this value if nested parameter types are not fully resolved; lower it if loading is slow for assemblies with deeply nested types.

Parameters

Double click on parameter rows to set values. Depending on the value type different input forms will be used.
