Task Sharepoint- List File​

The SharePoint - List file(s) Task retrieves a list of existing files from the SharePoint library using a file filter.

The SharePoint Tasks supports the following versions:

  • SharePoint 2010
  • SharePoint 2013
  • SharePoint Online

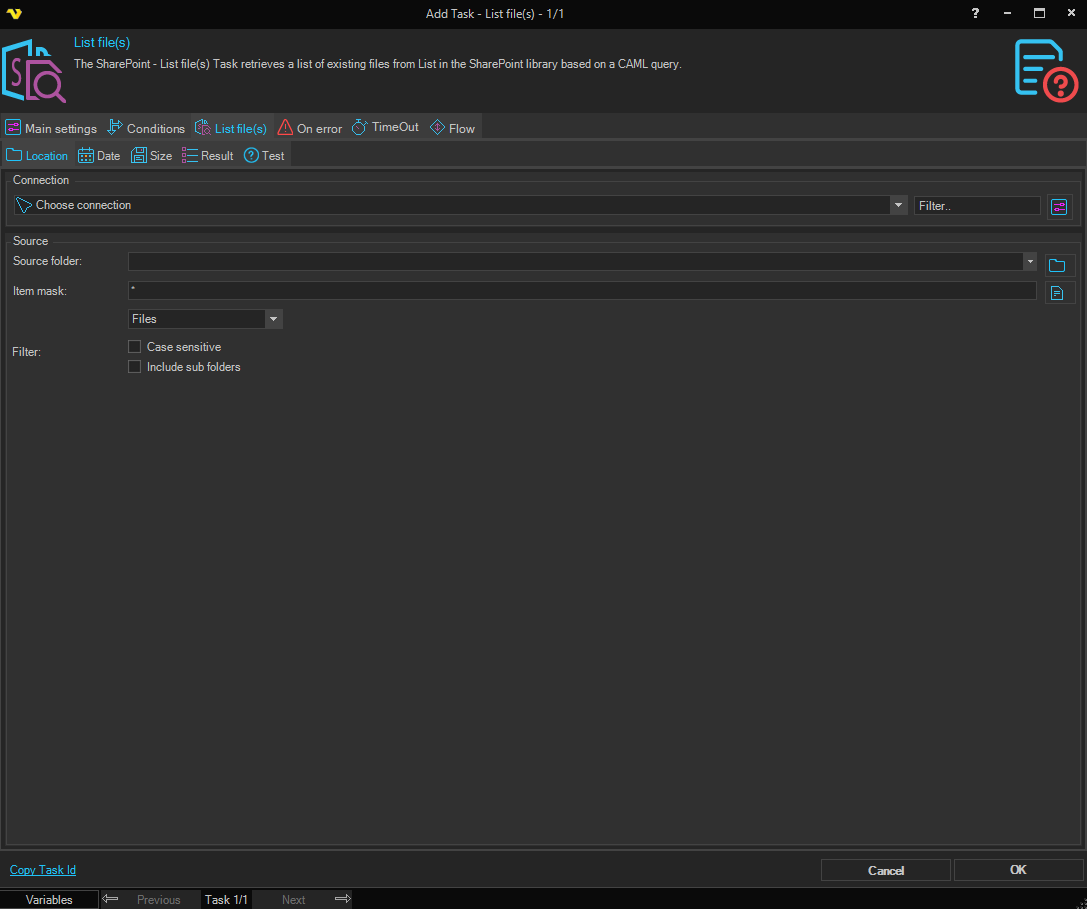

List file(s) > Location tab

Connection

To use SharePoint Tasks you need to create a Connection first. Click the Settings icon to open the Manage Connections dialog.

Source folder

The source folder path on the SharePoint site. Click the Folder icon to browse the SharePoint site and select a specific folder.

Item mask

A wildcard pattern used to match the files to list (e.g. * for all files, *.txt for text files only).

Filter

Select the content filter type to apply when selecting files.

Case sensitive

When checked, the item mask matching is case sensitive.

Include sub folders

When checked, files in sub folders of the source folder are also included.

List file(s) > Date tab

Newer than

Select a check type and enter a date or variable. Only files newer than the specified date will be included.

Older than

Select a check type and enter a date or variable. Only files older than the specified date will be included.

Use the AND/OR operator between the two date conditions to control how they are combined.

List file(s) > Size tab

Check if file is smaller than x size

When checked, only files smaller than the specified size are included. Select the size unit (bytes, KB, MB, etc.).

Check if file is larger than x size

When checked, only files larger than the specified size are included. Select the size unit (bytes, KB, MB, etc.).

Use the AND/OR operator between the two size conditions to control how they are combined.

List file(s) > Result tab

Sort

When checked, the matched file list is sorted before processing. Select the sort column and sort direction.

Limit

When checked, the number of matched files returned is limited to the specified value.

List file(s) > Test tab

Click the Show filtered files button to preview which files match the current filter settings before running the task. The number of matched files and elapsed time are displayed.
