Task Net - HTTP​

The HTTP Task sends an HTTP or HTTPS request to a URL and returns the response, for example to call a REST API, run a script on a web server or download a file. The response body is the output of the Task, so later Tasks can use it, save it to a file or send it by email.

The Main settings, Flow, On error, Conditions and TimeOut tabs are the same for every Task; see Job - Tasks.

The HTTP settings are on the HTTP tab of the Task window, which has its own inner tabs: Main settings, Headers, Parameters/Body, Security, Certificates, Save content/response and OAuth parameters. The inner Main settings tab is not the Task window's shared Main settings tab.

HTTP: Main settings tab​

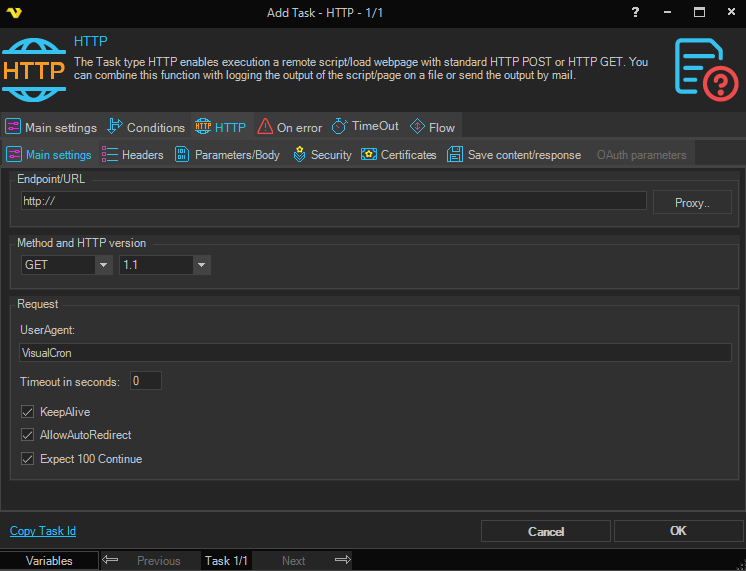

Main settings tab of the HTTP Task, with the Endpoint/URL, Method and HTTP version, and Request groups

  • Endpoint/URL: the URL to call, for example https://<host>/<path>

    With GET, you can add query parameters to the URL, as in ?<key1>=<value1>&<key2>=<value2>, or enter them on Parameters/Body. With POST, enter the parameters on Parameters/Body only.

  • Proxy..: opens the proxy settings for the request

  • Method and HTTP version: the method, "POST", "PUT", "GET", "DELETE" or "PATCH", and the HTTP version, "1.1" or "1.0"

    A new Task has "GET" and "1.1". Many servers write URLs to their logs, so send values that should not be logged in the body of a POST rather than in a GET URL.

  • UserAgent: the User-Agent header of the request, "VisualCron" on a new Task

    Change it if the server expects a particular user agent.

  • Timeout in seconds: how long the request can take

    "0", the default, means no time limit. To limit how long the whole Task can run, use the Task's TimeOut tab (see Task - Timeout).

  • KeepAlive: selected by default, so the request asks the server to keep the connection open for later requests

    If you clear it, the request may send a Connection: Close header.

  • AllowAutoRedirect: selected by default, so the request follows HTTP redirects to the new location

    Clear it to get the redirect response itself.

  • Expect 100 Continue: selected by default, so the request sends an Expect: 100-continue header

    If the server returns HTTP error 417, clear this check box.

HTTP: Headers tab​

Headers tab of the HTTP Task, with the Content-type header list, the Other headers grid and the cookie option

  • Content-type header: the Content-Type of the request

    The list has the most common types, and "application/x-www-form-urlencoded" is the default. Choose the type that matches the body type on Parameters/Body.

  • Base on file type: used only with PUT and PATCH, and selected by default

    While it is selected, the content type is taken from the file extension of the binary body file. Any other body type has no file, so the content type becomes "text/plain". To send the Content-type header you chose, clear this check box. With POST and GET, the Task always sends the Content-type header; with DELETE, only when the request has a body.

  • Other headers: custom headers

    Click Add, Edit or Delete to change the list.

  • Use cookies from headers only: sends only the cookies of a Cookie header that you added

    The HTTP and Web Macro Tasks of one Job run share one cookie store. The HTTP Task sends the cookies in it, and adds the cookies that servers set. Web Macro Tasks use the store when Pass cookies between Tasks in Job session is selected (see Task Net - Web Macro), so a session that a Web Macro Task signed in to can be used by a later HTTP Task in the same run, and the other way round. When Use cookies from headers only is selected and you have added a Cookie header under Other headers, the Task sends only the cookies in that header. It does not send the stored cookies, and it does not store the cookies from the response. The check box is selected automatically when you add a Cookie header.

HTTP: Parameters/Body tab​

Parameters/Body tab of the HTTP Task, with the x-www-form-urlencoded, form-data, raw and binary body tabs

Click the tab of the body type to send, and set a matching Content-type header on Headers:

  • x-www-form-urlencoded: key/value pairs, for simple form posts

  • form-data: a multipart body of text parts and file parts, for example to upload files

    Each file part selects its file with a file filter, which must match exactly one file.

  • raw: text sent as it is, for example a JSON body

  • binary: the content of one file, selected with a file filter that must match exactly one file

    If the filter matches no file, or more than one, the Task records an error, but the request is still sent, with an empty body; see the warning below.

With GET, the x-www-form-urlencoded and raw bodies are added to the URL as a query string.

warning

A form-data file part whose file filter matches no file, or more than one file, is left out of the request, and the Task does not fail. The request is sent without that file. To make sure the file is there, check for it in an earlier step, for example with a Condition - File.

When the file filter of a binary body matches no file, or more than one, the Task records an error and fails, but it still sends the request, with an empty body. POST, PUT and PATCH then send no content, which can replace the server's resource with empty content, and DELETE still runs. Check for the file in an earlier step in the same way.

HTTP: Security tab​

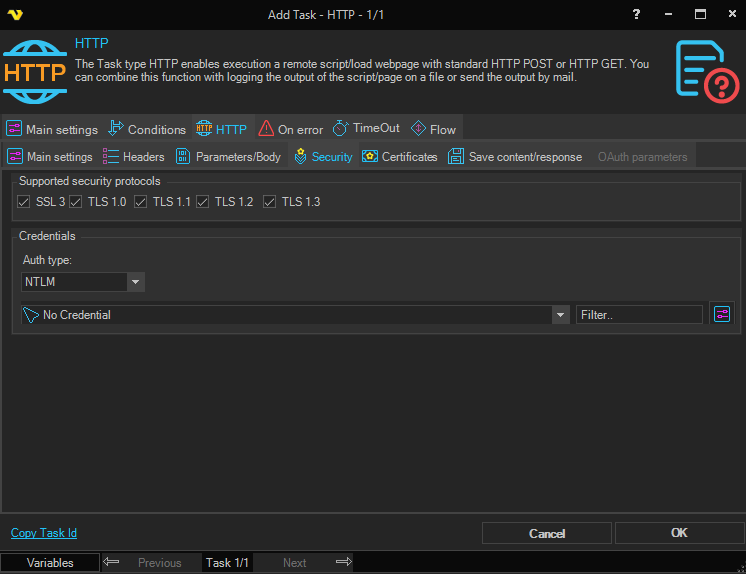

Security tab of the HTTP Task, with the Supported security protocols group and the Credentials group with the Auth type list

  • Supported security protocols: the protocols the request can use with an "https://" URL: "SSL 3", "TLS 1.0", "TLS 1.1", "TLS 1.2" and "TLS 1.3"

    All are selected by default.

  • Credentials: optional. The Credential with the user name and password to sign in with (see Global - Credentials)

    Without a Credential, the request uses no authentication, except with Auth type "OAuth", which needs no Credential.

  • Auth type: the authentication method:

    • "Basic": sends the user name and password with the first request, Base64 encoded. Base64 is an encoding, not encryption
    • "NTLM" (default): Windows NT LAN Manager challenge-response authentication
    • "Digest": MD5-based challenge-response authentication
    • "Negotiate": chooses Kerberos or NTLM
    • "Kerberos": ticket-based authentication for domain environments
    • "OAuth": an OAuth 2.0 access token, set up on the OAuth parameters tab
warning

With "Basic", the Task sends the user name and password with the first request, before the server asks for them, and anyone who can see the traffic can read them. Use "Basic" only with "https://" URLs. Because the Task does not check server certificates (see HTTP: Certificates tab), "https://" protects them only on a network path that you trust.

HTTP: Certificates tab​

Add a client certificate here for the request to present when the server asks for one. The certificates come from Global - Certificates.

warning

The HTTP Task accepts every server certificate, including expired, self-signed and mismatched ones, and has no setting to check them. It cannot tell the real server from another server that answers at the same address. Use it only with servers that you trust, and do not send credentials over a network path that you do not trust.

HTTP: OAuth parameters tab​

This tab is available only when Auth type is "OAuth". It holds the settings to get an OAuth 2.0 access token. Client ID, Client secret and Refresh token are required.

  • Token endpoint/URL: the token endpoint of the OAuth provider

  • Client ID: the client identifier issued when the application was registered with the provider

  • Client secret: the secret issued with the Client ID, stored encrypted

  • Refresh token: the refresh token that VisualCron uses to get a new access token for each run, stored encrypted

  • Authenticate: opens the OAuth - Authorize window, to get a refresh token from the provider

    Enter the provider's Authorize endpoint/URL, Redirect URI and Scope, and any optional parameters for the authorization code request and the token request. Select Use internal browser to sign in in a browser inside the Client. When the sign-in succeeds, Refresh token is filled in.

  • Additional parameters: key/value pairs sent with the token request

    Click Add, Edit or Delete to change the list.

note

If the token request fails, the Task fails, but the request is still sent, without a token. If the provider returns no access token, the request is sent without one, and the Task does not fail because of the token.

HTTP: Save content/response tab​

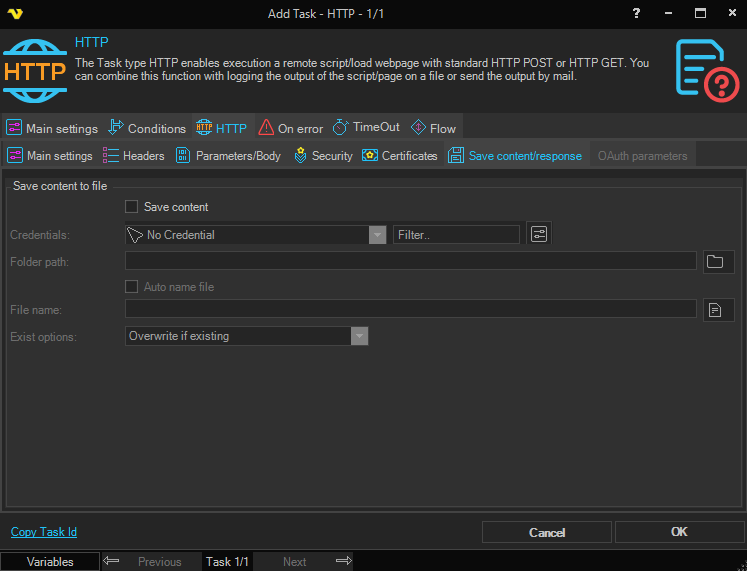

Save content/response tab of the HTTP Task, with the Save content check box, the Credentials, Folder path, Auto name file and File name fields and the Exist options list

By default, the response body is the output of the Task, as text. To save the response to a file instead, for example to download a file, select Save content. This tab is available only with the GET and POST methods.

warning

The response is kept, as output or as a file, only when Store standard output is selected on the Task window's shared Main settings tab (see Task - Main Settings). It is selected by default. If it is cleared, the Task saves nothing and still succeeds.

  • Save content: writes the response body to a file instead of the output

  • Credentials: optional. The Credential to write the file with, for example for a network folder (see Global - Credentials)

  • Folder path: the folder to save the file in

  • Auto name file: selected by default, so the Task names the file

    The file gets the name in the response's Content-Disposition header. When the response has no such header, it gets the last part of the URL, including any query string. A query string can make the save fail, so for a URL with a query string, clear Auto name file and enter a File name.

  • File name: the name of the file, used when Auto name file is cleared

  • Exist options: what to do when the file exists:

    • "Overwrite if existing" (default): replaces the file
    • "Overwrite if newer": replaces the file when the response's Last-Modified date is later than the file's modified date. When the response has no Last-Modified header, the file is replaced on every run
    • "Append to file": adds the response to the end of the file
    • "Skip": keeps the file and writes a message to the output
warning

With the default "Overwrite if existing", a file with the same name in Folder path is replaced. "Overwrite if newer" also replaces it on every run when the server sends no Last-Modified header, which is common for generated responses. To keep existing files, choose "Skip".

Output and result​

The Task result shows the HTTP status code and the response headers. Both are available as Task result Variables for later Tasks (see Task - Output and Result).

If the server returns an error status code, such as 404 or 500, the Task fails, unless its On error settings exclude the error (see Task - On Error). The response body is then written to the standard error output.

Troubleshooting​

If the Task fails with the error The requested security protocol is not supported., the Windows version of the VisualCron Server does not support one of the protocols selected in Supported security protocols. Clear "SSL 3" first. If the error remains on an older Windows version, also clear "TLS 1.3". Keep "TLS 1.2" selected.
